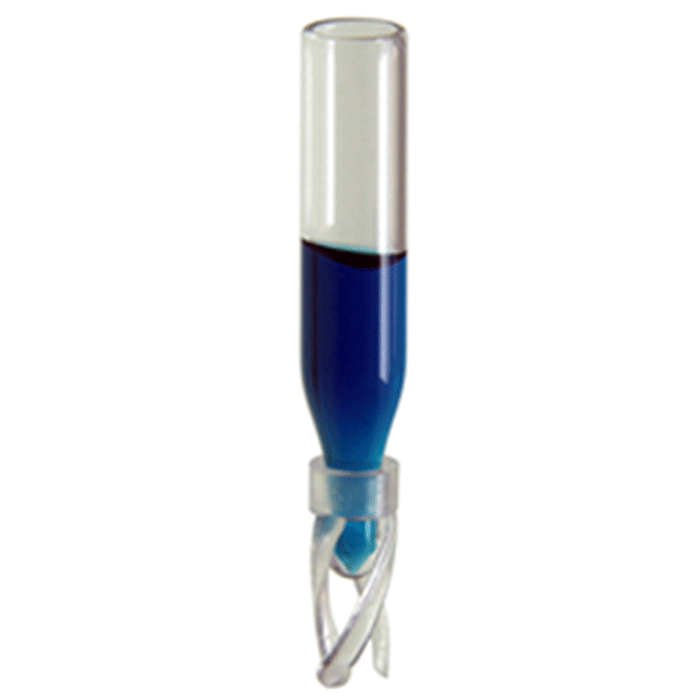

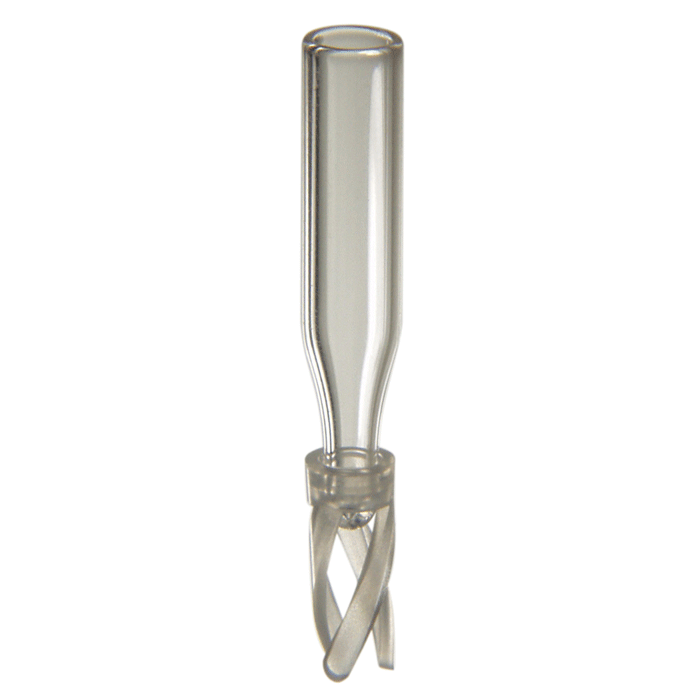

Inserts, Low Volume for Vials, Glass. Clear, Deactivated, 300ul fill volume with a conical, precision point and 6x29mm outer dimensions with plastic spring attached. For use in 2ml autosampler vials. AQ Brand. 100/PK.
Additional Info:
Improve recovery and reproducibility for sensitive analytes with deactivated low volume inserts designed to minimize surface interactions.
9502S‑02ND inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and undergo a deactivation (silanization) process to reduce active surface sites. This treatment minimizes adsorption of polar and basic compounds, improving recovery and consistency compared to untreated glass inserts.

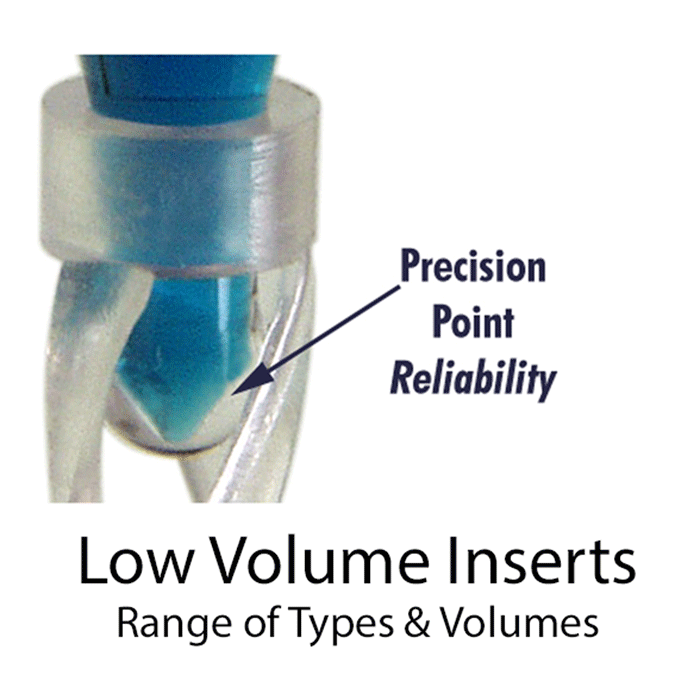

Each insert features a mandrel‑formed, precision conical tip that concentrates sample at the bottom for maximum recovery and reproducibility. Residual volume is approximately 2 µL with most autosamplers, with about 200 µL usable volume. Polypropylene springs are attached to keep the insert centered within the vial, reducing the risk of needle contact and insert breakage during operation.
Bottom depths, heights, and internal geometries are carefully controlled to ensure reliable needle alignment and consistent performance. Manufactured in an ISO 9001:2015 certified facility, these inserts provide dependable quality and reproducibility across batches.
Key Benefits
300 µL fill volume for low‑volume workflows
~200 µL usable volume for efficient sample use
~2 µL residual volume for improved recovery
Deactivated (silanized) surface reduces adsorption
Precision conical tip improves reproducibility
Spring‑mounted design keeps insert centered
Reduced risk of needle damage and insert breakage
Type 33 borosilicate glass for chemical durability
Typical Applications
LC‑MS and LC‑MS/MS analysis
HPLC and UHPLC workflows
Polar and basic compound analysis
Pharmaceutical and bioanalytical testing
Environmental and food safety applications
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance and Design Notes
Mandrel‑formed tips ensure uniform geometry
Controlled dimensions support consistent automation
Deactivation improves performance vs untreated glass
Comparable to leading “certified” insert brands
Important Notes
Ideal for adsorption‑sensitive analytes
Provides improved recovery compared to standard glass inserts
Designed for routine and intermediate sensitivity workflows
